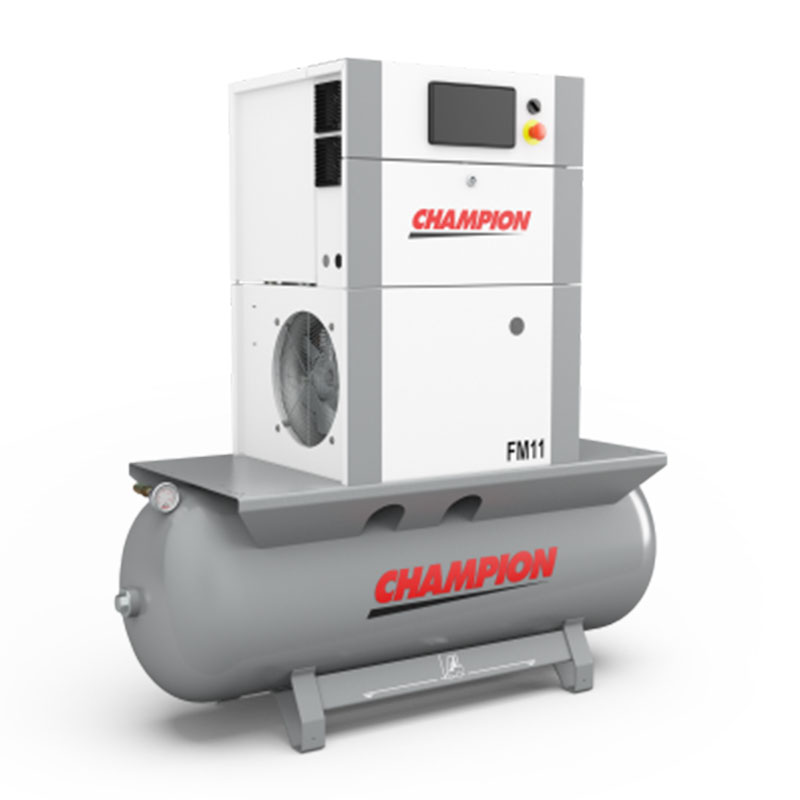

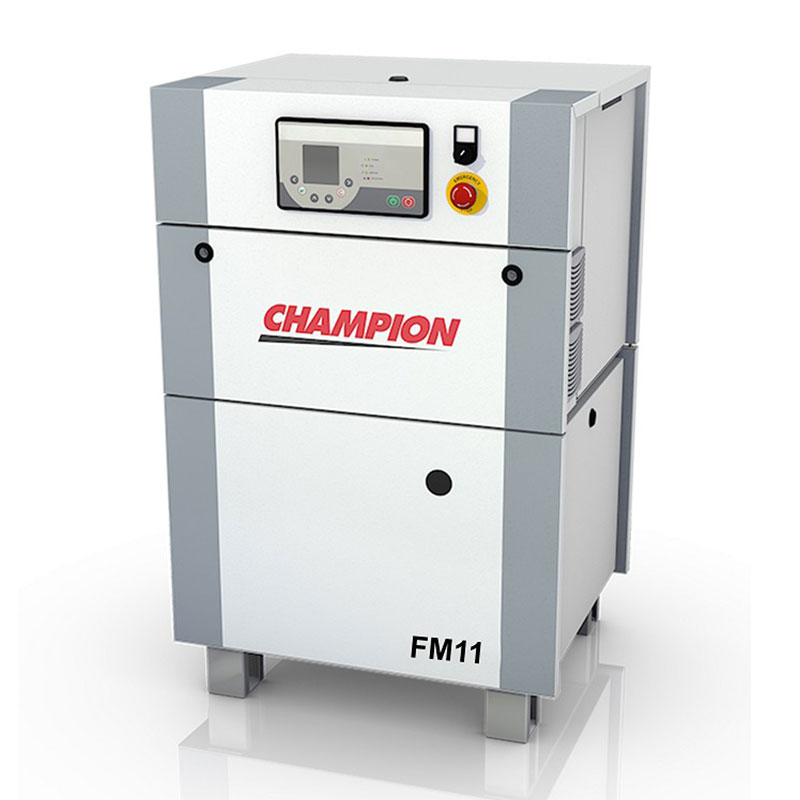

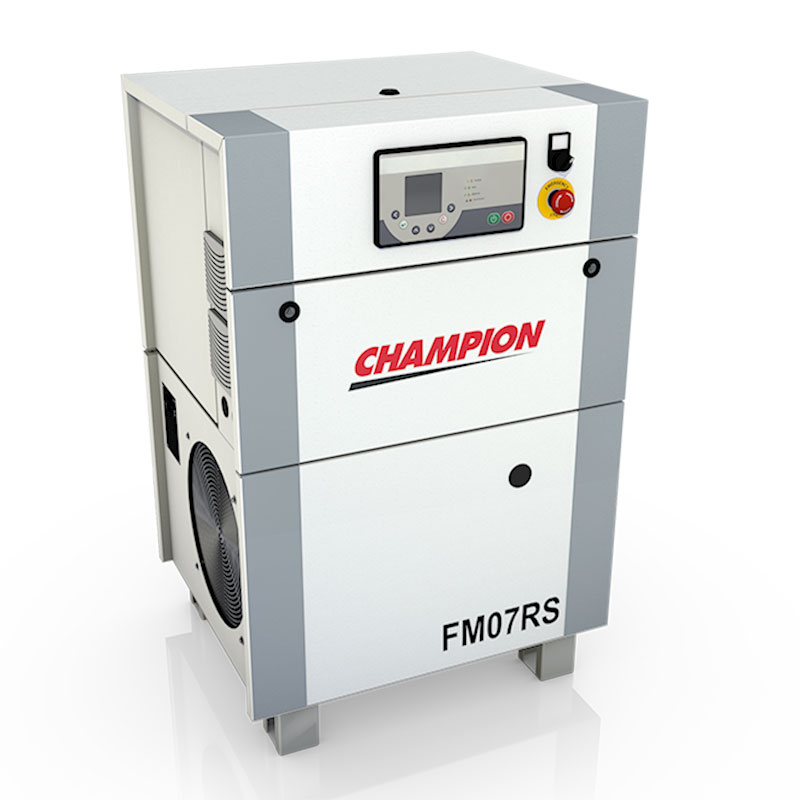

INGERSOLL RAND CHAMPION
FM 7.5-11 Series Screw Compressors
The spacious ventilation system guarantees optimal cooling and maintains low outlet air temperatures, ensuring peak performance and reliability even in the most challenging environments. The airends prioritize both reliability and efficiency, featuring a distinctive flat specific power consumption curve that allows for effective operation across a broad rpm range, as illustrated in the accompanying graph. This design contributes to enhanced performance and reduced energy costs.
Hidden - do not remove
Features
Oil flooded, Single stage rotary screw compressor, belt drive, air cooled
Nominal Pressure: 7 – 8 – 10 – 13 bar g
Motor Power: 7 – 11 KW
Volume Flow: 0.8 – 1.59 m3/min
Noise Level: 67 – 70 DB(A)
3 analog inputs
Sequence control standard up to 8 units (up to 7 units fixed speed and 1 variable speed)
Standard Modbus
Ongoing system monitoring
15 stored failure records
